Bosch GRL4000-90CHVGK 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser Kit with (1) CORE18V 4 Ah Advanced Power Battery
HomeStore

Bosch GRL4000-90CHVGK 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser Kit with (1) CORE18V 4 Ah Advanced Power Battery

Bosch GRL4000-90CHVGK 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser Kit with (1) CORE18V 4 Ah Advanced Power Battery

Bosch GRL4000-90CHVGK Description

The 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser Kit with uCAL User-calibration delivers a comprehensive solution for precise outdoor and indoor leveling. It has a Dual Dial-In Slope feature that allows slope angle adjustment on both the X and Y axes, for grading applications. This laser is powered by a Bosch CORE18V® 4 Ah battery, providing extended runtime. Its green-beam laser is up to 4X brighter than standard red beams. The rotary laser is compatible with 4 Ah and 8 Ah Bosch CORE18V® Li-ion batteries. It also features an alkaline adapter to use four (D) cells. The REVOLVE4000 is engineered with a cage overmold and an innovative handle design, and it is built to IP68 dust- and water-protection standards. It features Bluetooth® connectivity to a connected device, linking to the Bosch Leveling Remote App. This app controls on/off, Dual Dial-In Slope, and more. The rotary laser features uCAL, for user-calibration, taking the user step by step through the calibration process. This avoids tool down time and provides confidence that the laser is accurate. It delivers accuracy of up to ±1/16 In. at 100 Ft. in horizontal applications and ±1/8 In. at 100 Ft. in vertical mode, and a range of up to 4,000 Ft. with laser receiver. The laser features a vertical beam at 90° point for layout, squaring and plumb applications. The comprehensive kit includes a remote control, 18V 4 Ah battery and charger, alkaline battery adapter, wall mount, laser receiver, aluminum tripod, sturdy grade rod and durable hard carrying case.

Bosch GRL4000-90CHVGK Includes

  • (1) GRL4000-90CHVG 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser
  • (1) LR40G Laser Receiver with Bracket
  • (1) GBA18V40 18V CORE18V® Lithium-Ion 4 Ah Advanced Power Battery
  • (1) 18V Battery Charger
  • (1) BA1 Alkaline Battery Adapter
  • (4) D Batteries
  • (4) AA Batteries
  • (1) BT170 Heavy-Duty Aluminum Tripod
  • (1) GR13 13 Ft. Grade Rod
  • (1) WM6 Wall Mount
  • (1) RC5 Remote Control
  • (1) Carrying Case

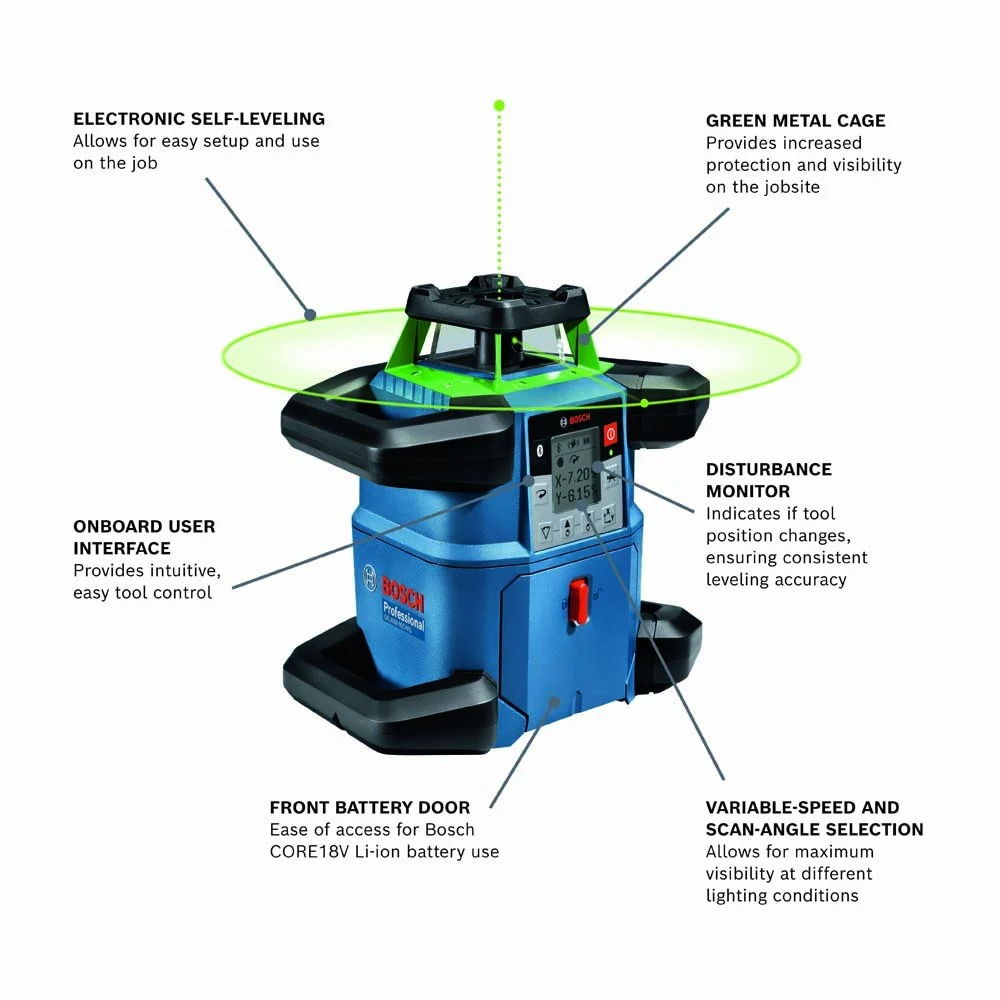

Bosch GRL4000-90CHVGK Features

  • Fully featured rotary laser – has Dual Dial-In Slope, CORE18V® power, Bluetooth® connectivity, uCAL user-calibration and more
  • Dual Dial-In Slope – allows slope angle adjustment on both the X and Y axes
  • Dual power source – for extended runtime and option of a 4 or 8 Ah CORE18V® battery or a battery adapter with four (D) cell batteries
  • Durable design – engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards
  • Bluetooth® connectivity – connects to a mobile device, linking to the free Bosch Leveling Remote App, to control sleep mode, Dual Dial-In Slope, and more
  • uCAL – user-calibration guiding the user step-by-step to confirm tool status or calibrate the rotary laser to ensure accuracy on the jobsite
  • Long working range – range of up to 4,000 Ft. with laser receiver, the laser accuracy of up to ±1/16 In. at 100 Ft. in horizontal mode and ±1/8 In. at 100 Ft. in vertical mode
  • Vertical plumb and vertical orientation – provides a vertical beam at 90° point for layout, squaring and plumb applications and operates in a vertical orientation for façade installation and long-range layout applications
  • Electronic self-leveling – allows for easy setup and use on the job

Bosch GRL4000-90CHVGK Specifications

Laser Beam Color Green
Laser Diode Class 2, 500-540 nm
Leveling Type Self-Leveling, Up to 5°
Material Plastic Composite
Mount Threading 5/8-11
Operating Temperature 14° F / -10° C ~1 22° F / 50° C
Range Up to 4000'
Battery Lithium-Ion Battery
IP Rating IP 68
$944.65

Original: $2,699.00

-65%
Bosch GRL4000-90CHVGK 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser Kit with (1) CORE18V 4 Ah Advanced Power Battery—

$2,699.00

$944.65

More Images

Bosch GRL4000-90CHVGK 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser Kit with (1) CORE18V 4 Ah Advanced Power Battery - Image 2
Bosch GRL4000-90CHVGK 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser Kit with (1) CORE18V 4 Ah Advanced Power Battery - Image 3
Bosch GRL4000-90CHVGK 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser Kit with (1) CORE18V 4 Ah Advanced Power Battery - Image 4
Bosch GRL4000-90CHVGK 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser Kit with (1) CORE18V 4 Ah Advanced Power Battery - Image 5
Bosch GRL4000-90CHVGK 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser Kit with (1) CORE18V 4 Ah Advanced Power Battery - Image 6
Bosch GRL4000-90CHVGK 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser Kit with (1) CORE18V 4 Ah Advanced Power Battery - Image 7
Bosch GRL4000-90CHVGK 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser Kit with (1) CORE18V 4 Ah Advanced Power Battery - Image 8
Bosch GRL4000-90CHVGK 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser Kit with (1) CORE18V 4 Ah Advanced Power Battery - Image 9
Bosch GRL4000-90CHVGK 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser Kit with (1) CORE18V 4 Ah Advanced Power Battery - Image 10
Bosch GRL4000-90CHVGK 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser Kit with (1) CORE18V 4 Ah Advanced Power Battery - Image 11
Bosch GRL4000-90CHVGK 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser Kit with (1) CORE18V 4 Ah Advanced Power Battery - Image 12
Bosch GRL4000-90CHVGK 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser Kit with (1) CORE18V 4 Ah Advanced Power Battery - Image 13

Bosch GRL4000-90CHVGK 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser Kit with (1) CORE18V 4 Ah Advanced Power Battery

Bosch GRL4000-90CHVGK Description

The 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser Kit with uCAL User-calibration delivers a comprehensive solution for precise outdoor and indoor leveling. It has a Dual Dial-In Slope feature that allows slope angle adjustment on both the X and Y axes, for grading applications. This laser is powered by a Bosch CORE18V® 4 Ah battery, providing extended runtime. Its green-beam laser is up to 4X brighter than standard red beams. The rotary laser is compatible with 4 Ah and 8 Ah Bosch CORE18V® Li-ion batteries. It also features an alkaline adapter to use four (D) cells. The REVOLVE4000 is engineered with a cage overmold and an innovative handle design, and it is built to IP68 dust- and water-protection standards. It features Bluetooth® connectivity to a connected device, linking to the Bosch Leveling Remote App. This app controls on/off, Dual Dial-In Slope, and more. The rotary laser features uCAL, for user-calibration, taking the user step by step through the calibration process. This avoids tool down time and provides confidence that the laser is accurate. It delivers accuracy of up to ±1/16 In. at 100 Ft. in horizontal applications and ±1/8 In. at 100 Ft. in vertical mode, and a range of up to 4,000 Ft. with laser receiver. The laser features a vertical beam at 90° point for layout, squaring and plumb applications. The comprehensive kit includes a remote control, 18V 4 Ah battery and charger, alkaline battery adapter, wall mount, laser receiver, aluminum tripod, sturdy grade rod and durable hard carrying case.

Bosch GRL4000-90CHVGK Includes

  • (1) GRL4000-90CHVG 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser
  • (1) LR40G Laser Receiver with Bracket
  • (1) GBA18V40 18V CORE18V® Lithium-Ion 4 Ah Advanced Power Battery
  • (1) 18V Battery Charger
  • (1) BA1 Alkaline Battery Adapter
  • (4) D Batteries
  • (4) AA Batteries
  • (1) BT170 Heavy-Duty Aluminum Tripod
  • (1) GR13 13 Ft. Grade Rod
  • (1) WM6 Wall Mount
  • (1) RC5 Remote Control
  • (1) Carrying Case

Bosch GRL4000-90CHVGK Features

  • Fully featured rotary laser – has Dual Dial-In Slope, CORE18V® power, Bluetooth® connectivity, uCAL user-calibration and more
  • Dual Dial-In Slope – allows slope angle adjustment on both the X and Y axes
  • Dual power source – for extended runtime and option of a 4 or 8 Ah CORE18V® battery or a battery adapter with four (D) cell batteries
  • Durable design – engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards
  • Bluetooth® connectivity – connects to a mobile device, linking to the free Bosch Leveling Remote App, to control sleep mode, Dual Dial-In Slope, and more
  • uCAL – user-calibration guiding the user step-by-step to confirm tool status or calibrate the rotary laser to ensure accuracy on the jobsite
  • Long working range – range of up to 4,000 Ft. with laser receiver, the laser accuracy of up to ±1/16 In. at 100 Ft. in horizontal mode and ±1/8 In. at 100 Ft. in vertical mode
  • Vertical plumb and vertical orientation – provides a vertical beam at 90° point for layout, squaring and plumb applications and operates in a vertical orientation for façade installation and long-range layout applications
  • Electronic self-leveling – allows for easy setup and use on the job

Bosch GRL4000-90CHVGK Specifications

Laser Beam Color Green
Laser Diode Class 2, 500-540 nm
Leveling Type Self-Leveling, Up to 5°
Material Plastic Composite
Mount Threading 5/8-11
Operating Temperature 14° F / -10° C ~1 22° F / 50° C
Range Up to 4000'
Battery Lithium-Ion Battery
IP Rating IP 68
