Spectra LL500-1 Long Range Laser Complete Package with HL700 Receiver, Tripod and Grade Rod (Tenths)

INCLUDES:
• (1) LL500 Laser Level
• (1) HL700 Receiver with Clamp C70
• (4) D-Cell Alkaline Batteries
• (1) 1046-4750S Carrying Case
• (1) Operating Manual
• (1) 2161 Tripod Heavy Duty Aluminium

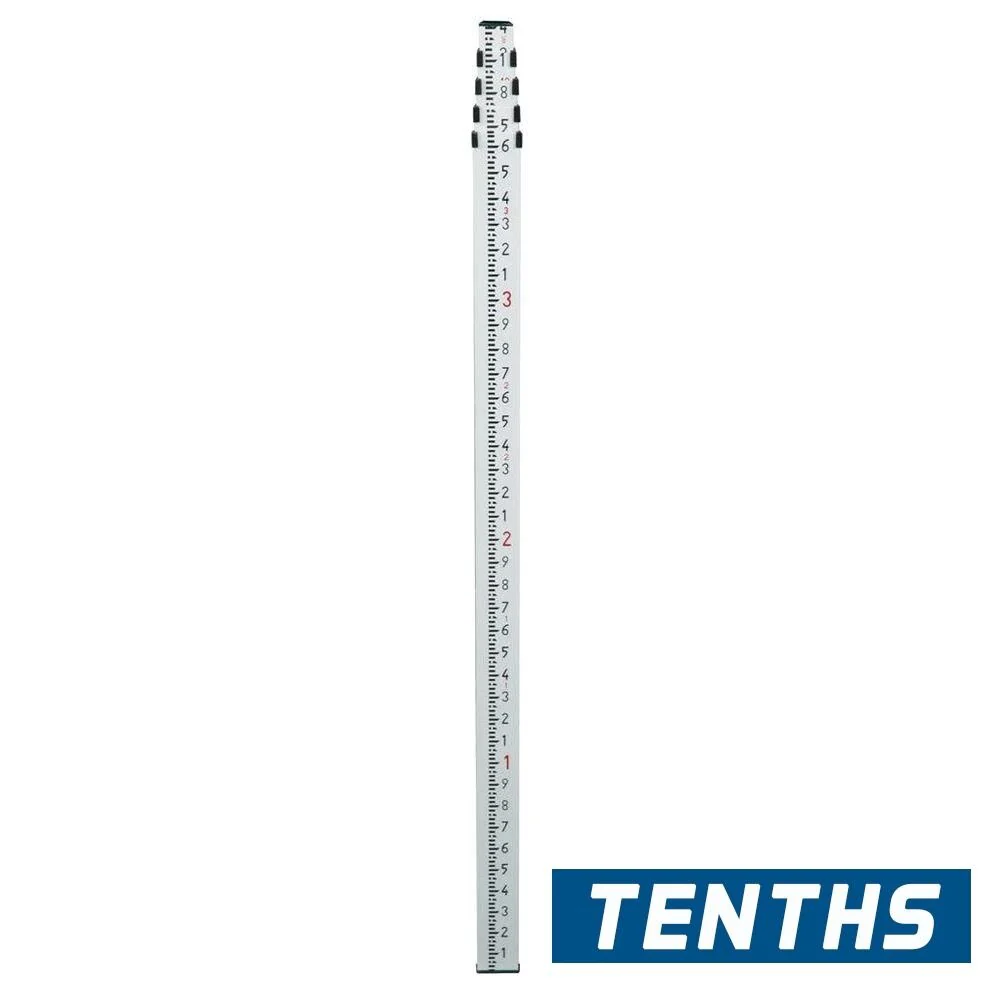

• (1) GR151 Grade Rod Tenths  15FT

FEATURES:
• 1,650 ft (500 m) working diameter which increases productivity by reducing need for multiple set-ups on a large job site
• Self-leveling with built-in ‘out-of-level’ shut off that maintains accuracy over the entire work area, and minimizes errors
• High accuracy laser, 1/16 in per 100 ft (1.5 mm per 30 m) with temperature compensation provides highly stable, repeatable accuracy even under large temperature changes
• Uses alkaline or rechargeable batteries–so you are less likely to run out of power and the unit keeps working with no downtime due to power loss
• Visible ‘spotting’ beam for determining receiver mounting placement making it faster to find the on-grade position
• Comes with a choice of HL700 or CR700 receivers allowing you to choose the best option to suit your application
• 5 Year warranty

SPECIFICATIONS:
• Leveling Accuracy: ± 1.5 mm/30 m, 1/16“ @ 100 ft, 10 arc seconds
• Operating Diameter: appr. 500 m (1600')
• Self-Leveling Range: ± 11 arc minutes
• Temperature Compensation: Yes
• Laser Type: 670 nm
• Laser Class: Class 2
• Compensation Type: Wire Hung, Air Damped
• Power source: 4x D-Cell Alkaline or NiMH Batteries
• Battery Life: 100 hours NiMH
• Operating Temperature: -20°C to 50°C (-4°F to 122°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Tripod Attachments: 5/8 x 11 Horizontally
• Dust and Waterproof: Yes - IP54
• HL700 Readout Receiver Digital Readout Units: mm, cm, ft, in, frac. in
• Reception Height: 127 mm (5")
• Six On-Grade Sensitivities: - Ultra Fine 0.5 mm (~1/32") - Super Fine 1 mm (~1/16") - Fine 2 mm (~1/8") - Medium 5 mm (~1/4") - Coarse 10 mm (~1/2") - Calibration Mode 0.1 mm (~1/64")
• Battery Life(2 x AA): 60+ hours Continuous Operation
• Auto Shut-Off: 30 minutes/24 hours
• Operating Temperature: -20°C to 50°C (-4°F to 122°F)
• Dust and Waterproof: Yes - IP67
• HL700 Receiver Working Radius: 1 m - 460 m (3' - 1500')
• Laser Detection Height: 127 mm (5")
• Numeric Readout Height: 102.0 mm (4“)
• Accuracy (Dead band): Ultra Fine 0.5 mm 0.02" 1/32", Super Fine 1.0 mm 0.05" 1/16", Fine 2.0 mm 0.10" 1/8", Medium 5.0 mm 0.20" 1/4", Coarse 10.0 mm 0.50" 1/2", Calibration 0.1 mm 0.01" 1/64"
• Reception Angle: ± 45° Minimum
• Detectable Spectrum: 610 nm ... 780 nm
• Beeper Volumes: Loud = 110 dBA, Medium = 95 dBA, Low = 65 dBA
• LED Grade Indicators: Front, Green on-grade Red Hi, Blue Low
• Power Supply: 2 x 1.5 Volt “AA” Batteries
• Battery Life: 60+ hours
• Automatic Shut Off: Selectable, 30 min, 24 h, Off
• Environmental: Waterproof, Dustproof to IP67
• Operating Temperature: -20°C...+60°C (-4°F... +140°F)
• Storage Temperature: -40°C...+70°C (-40°F...+158°F)
• Tripod: Yes
• Tripod Material: Aluminum
• Rod: 15' - 10ths


Accurate, stable and very reliable, the Spectra Precision® Laser LL500 is the ideal one-person leveling system for a range of everyday elevation measurements on the construction site. Designed for use on the jobsite, and reliable even in the harshest of conditions, today more contractors around the world use Spectra Precision Lasers to increase productivity and profitability.
